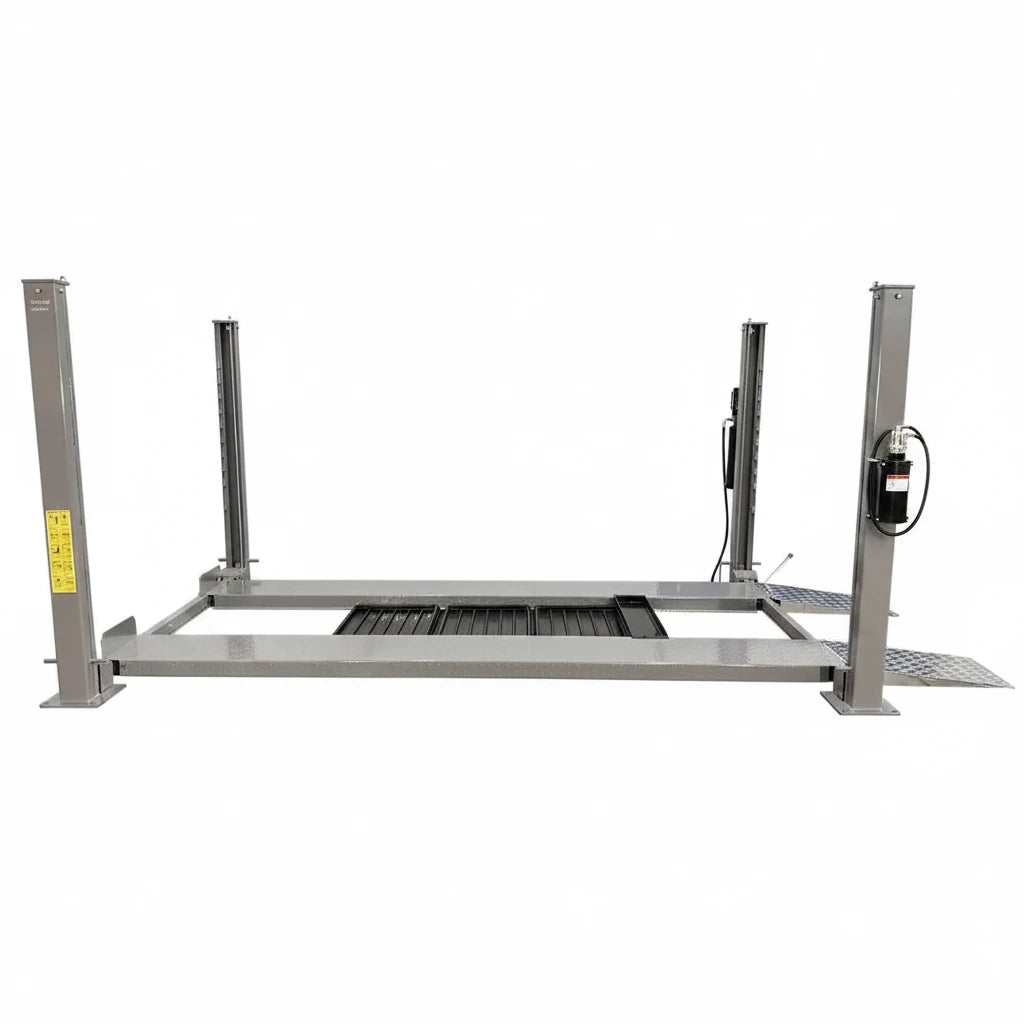

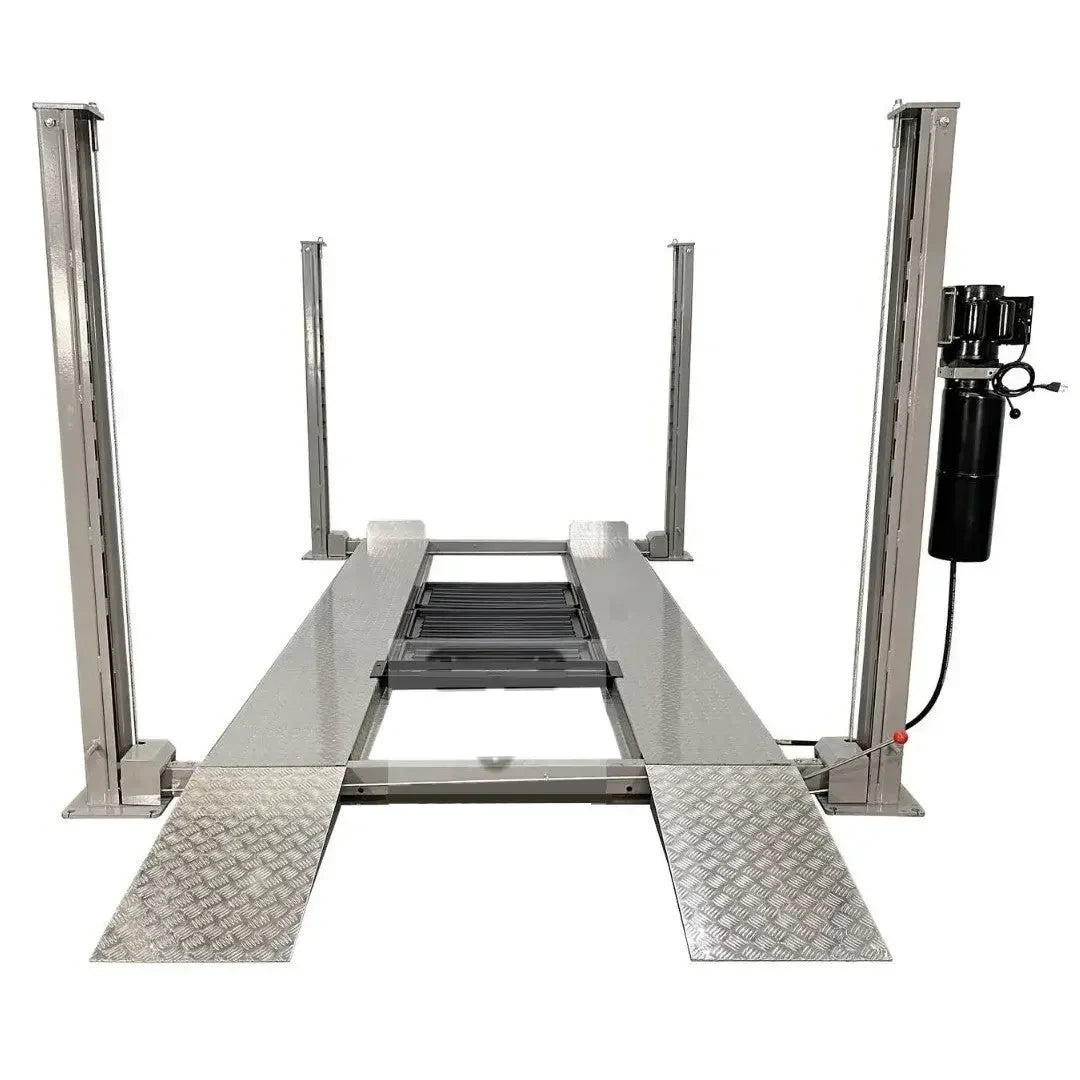

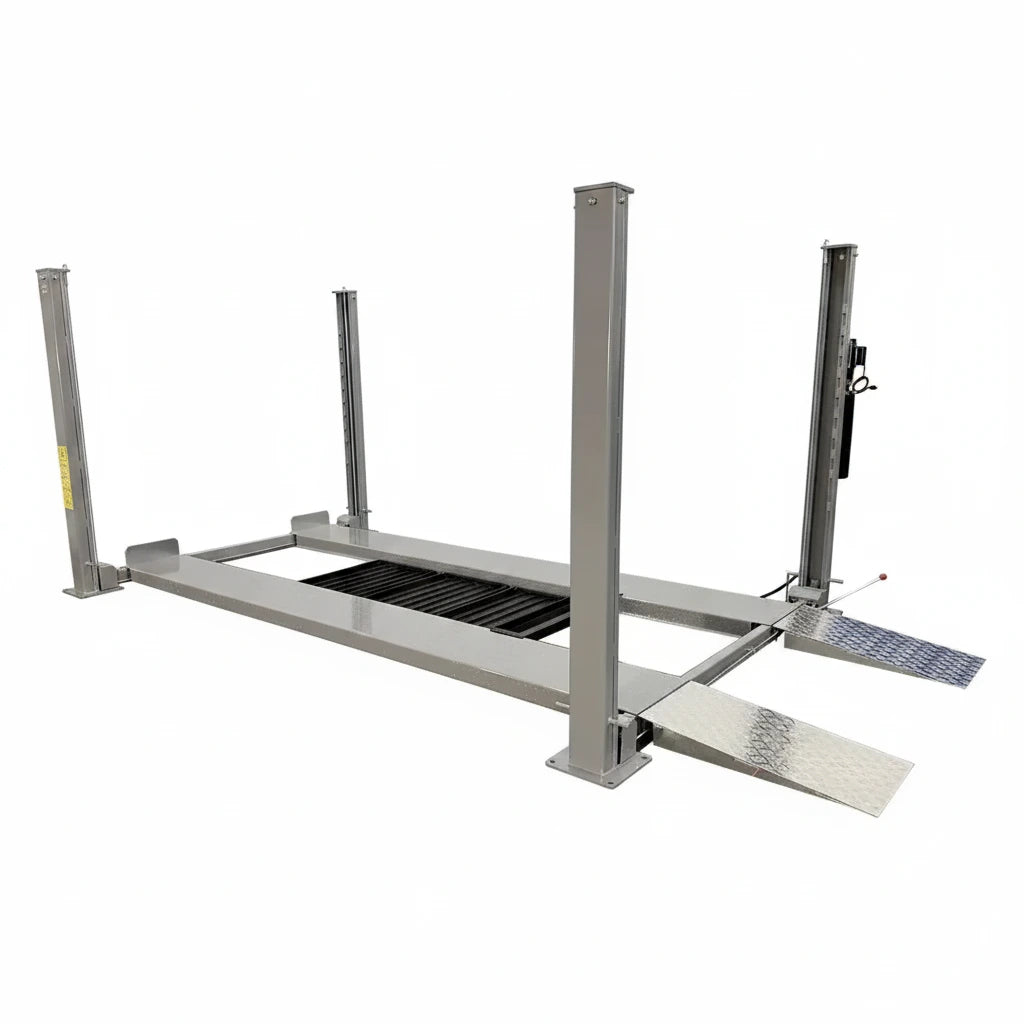

NSS-8XLT 8,000 Lb. 4 Post Car Lift

The NSS-8XLT 8,000 Lb. 4 Post Car Lift is designed with additional height and length for vehicle storage, maintenance access, and longer vehicles. It provides 79 inches of clearance under the runway, an 82-inch lift height at the top of the runway, a 180-inch runway length, and a 190-inch overall length. The lift features 10 mechanical locking positions, a single-point lock release, hydraulic operation, drive-on approach ramps, and a caster kit for repositioning the lift while empty. It operates on 110V power and completes a full raise in 40 seconds.

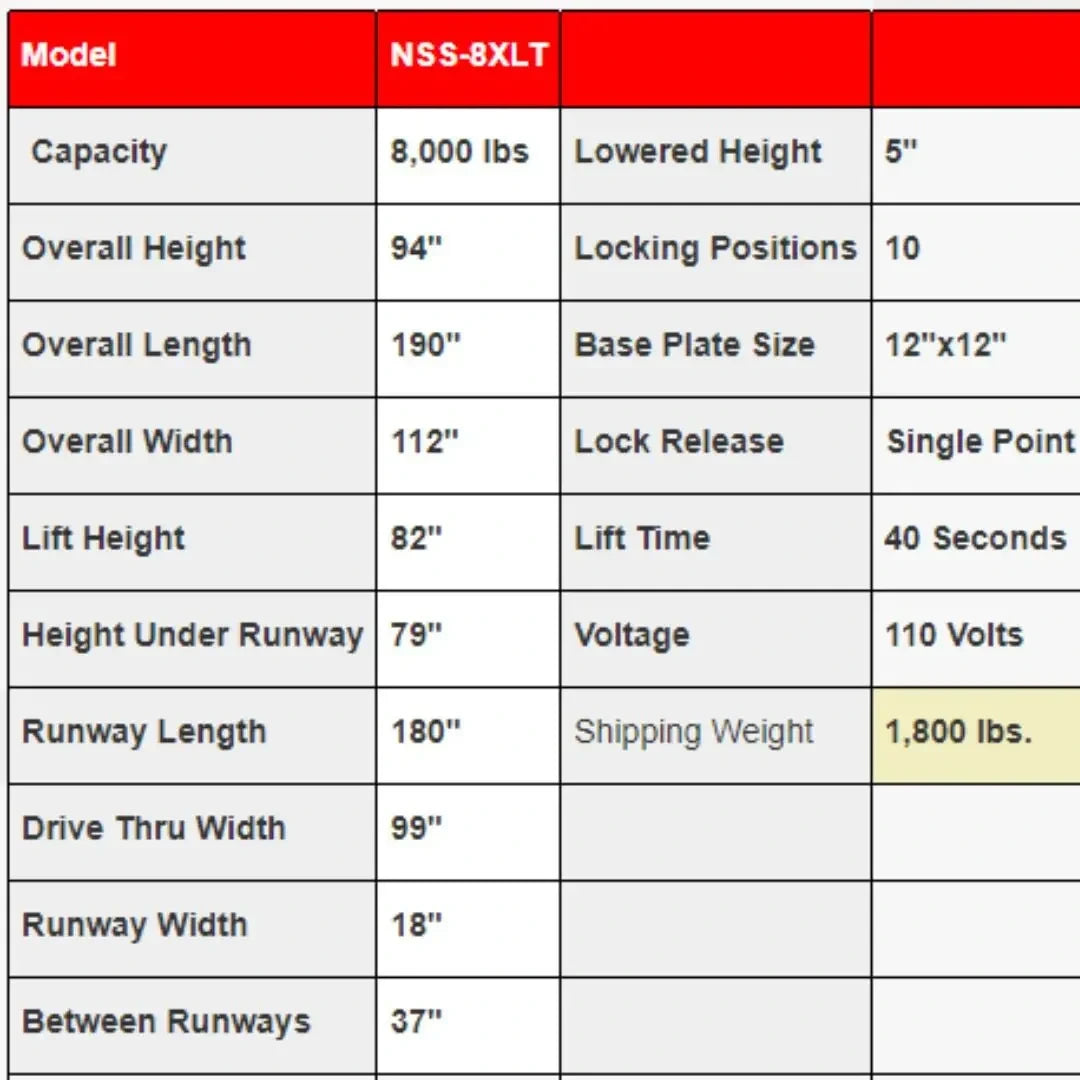

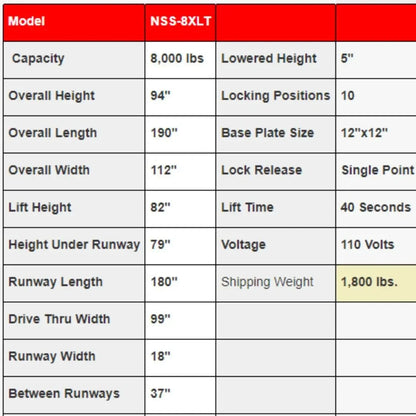

Specifications

• Model: NSS-8XLT

• Capacity: 8,000 lbs

• Shipping Weight: 1,800 lbs

• Overall Height: 94 inches

• Overall Length: 190 inches

• Overall Width: 112 inches

• Lift Height, Top of Runway: 82 inches

• Height Under the Runway: 79 inches

• Runway Length: 180 inches

• Runway Width: 18 inches

• Between the Runways: 37 inches

• Drive-Through Width: 99 inches

• Voltage: 110V

• Lift Time, Full Raise: 40 seconds

• Locking Positions: 10

• Lock Release: Single point

• Base Plate Size: 12 inches by 12 inches

Features

• 8,000 lb Lifting Capacity: Designed for cars, classic vehicles, and extended-length models.

• Extended Height: Provides 79 inches of clearance under the runway for increased access beneath the vehicle.

• Extended Runway: The 180-inch runway is designed to accommodate longer vehicles, including extended-cab pickups, long-wheelbase vans, full-size SUVs, and classic cars.

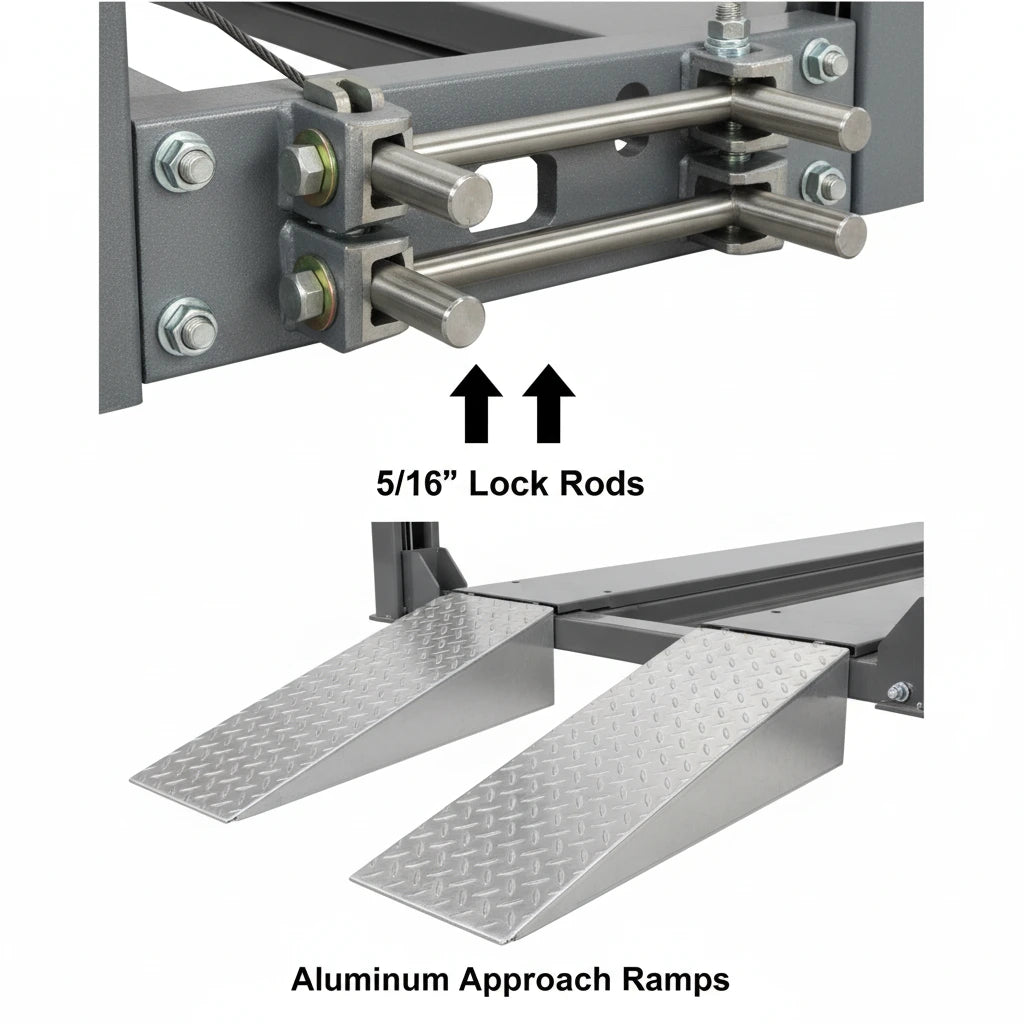

• Mechanical Locking System: Includes 10 locking positions for positioning the vehicle at different heights.

• Single-Point Release: Releases the locking system from a single point for coordinated lowering.

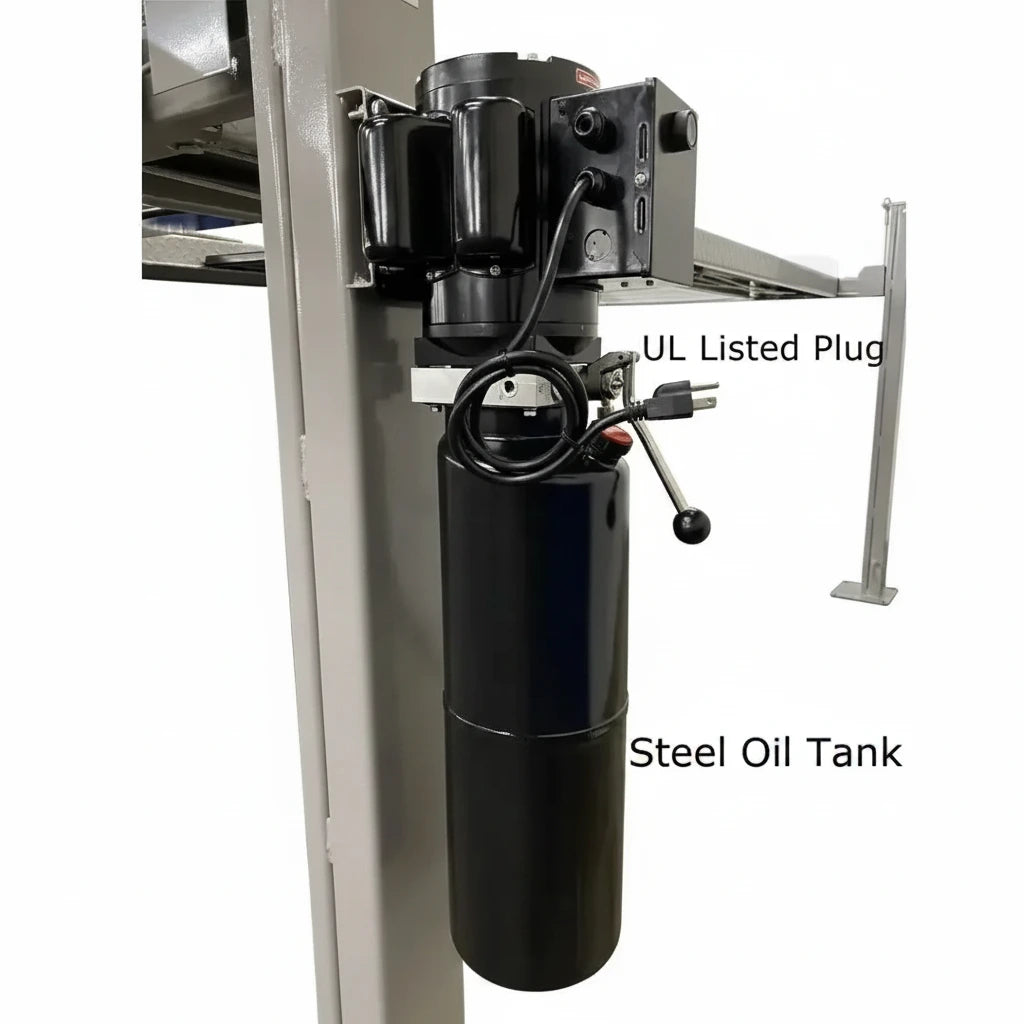

• Hydraulic Operation: Uses a hydraulic power unit for lifting and lowering.

• Drive-On Ramps: Approach ramps allow vehicles to be positioned onto the runways.

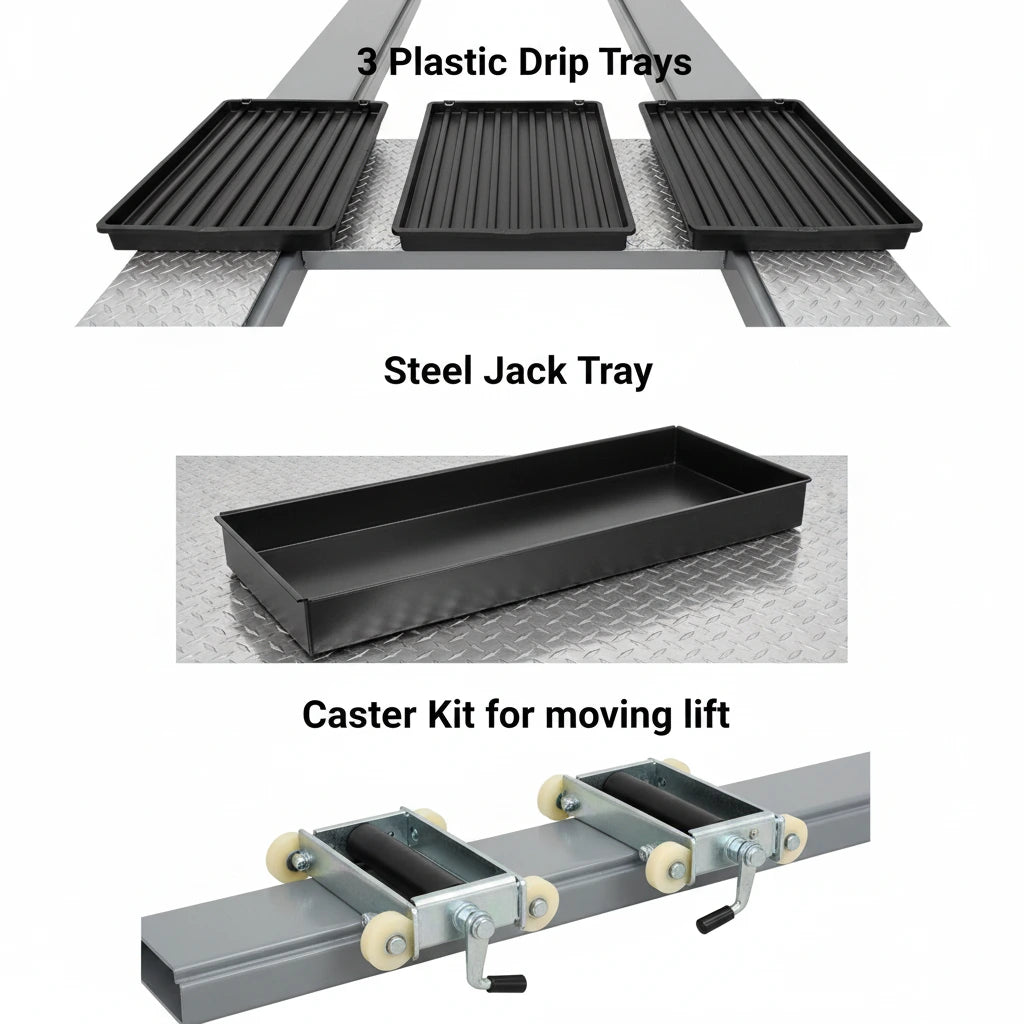

• Caster Kit: Allows the lift to be repositioned within the garage or workspace when empty.

• Steel Construction: Heavy-duty steel construction provides strength and stability.

What's in the Box

• Lift Components: Four columns and two runways

• Hydraulic Power Unit: Hydraulic power unit

• Approach Ramps: Drive-on approach ramps

• Caster Kit: Caster kit for repositioning the lift when empty

• Locking System: Mechanical locking system with a single-point release

• Installation: Installation hardware and manual

Warranty

• Product Warranty: Written warranty coverage is provided.
